MEASURE | DOUBLE HINGED

Table of Contents

MUST READ

Always measure from the outside looking in. Measure exactly where the screen will be installed and measurements must be to the nearest millimetre.
Always use the shortest measurement and we will make the necessary deductions.
Ensure you follow all instructions and read all information before proceeding with your order.

Do you have enough room for a door?

Ensure you have a minimum rebate of 20mm.

Ensure you have at least 55mm from the existing door to the edge of frame.

If you have no rebate, it is possible to attach a bead to create one.

DIAGRAM 1.1

How to Measure

When measuring make sure you are taking the measurements from inside the rebate. This is where your door will be fitted.

DIAGRAM 1.2

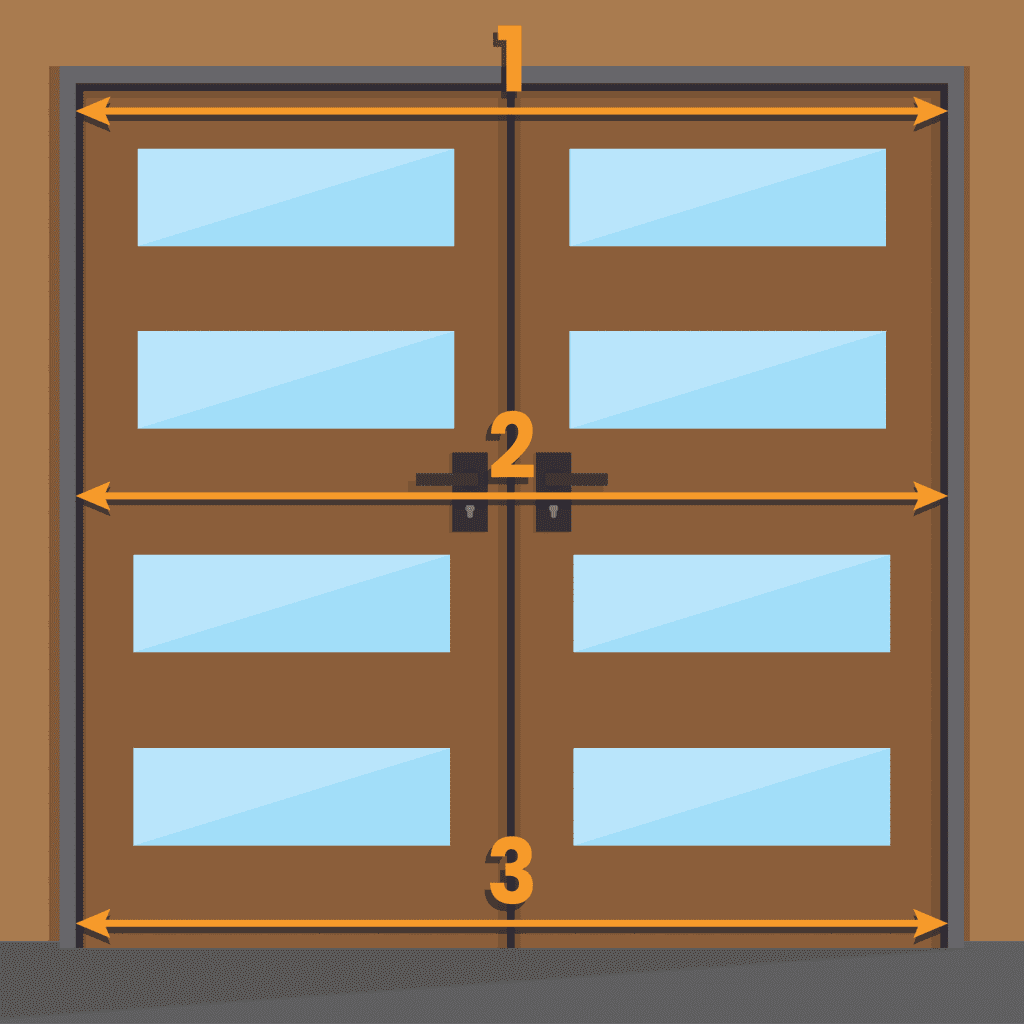

Measuring Width

Make sure you take at least 3 measurements at 3 different spots when measuring width. You can always take extra measurements if needed, and always double check. Then use the shortest length when submitting your order.

Always remember to measure from the outside.

DIAGRAM 2.7
Measuring Height

When measuring height, take at least 3 measurements. One from the left side, one from the centre, and one from the right side. You can always take extra measurements if needed, and always double check. Use the shortest length when submitting your order.

Always remember to measure from the outside.

DIAGRAM 2.8

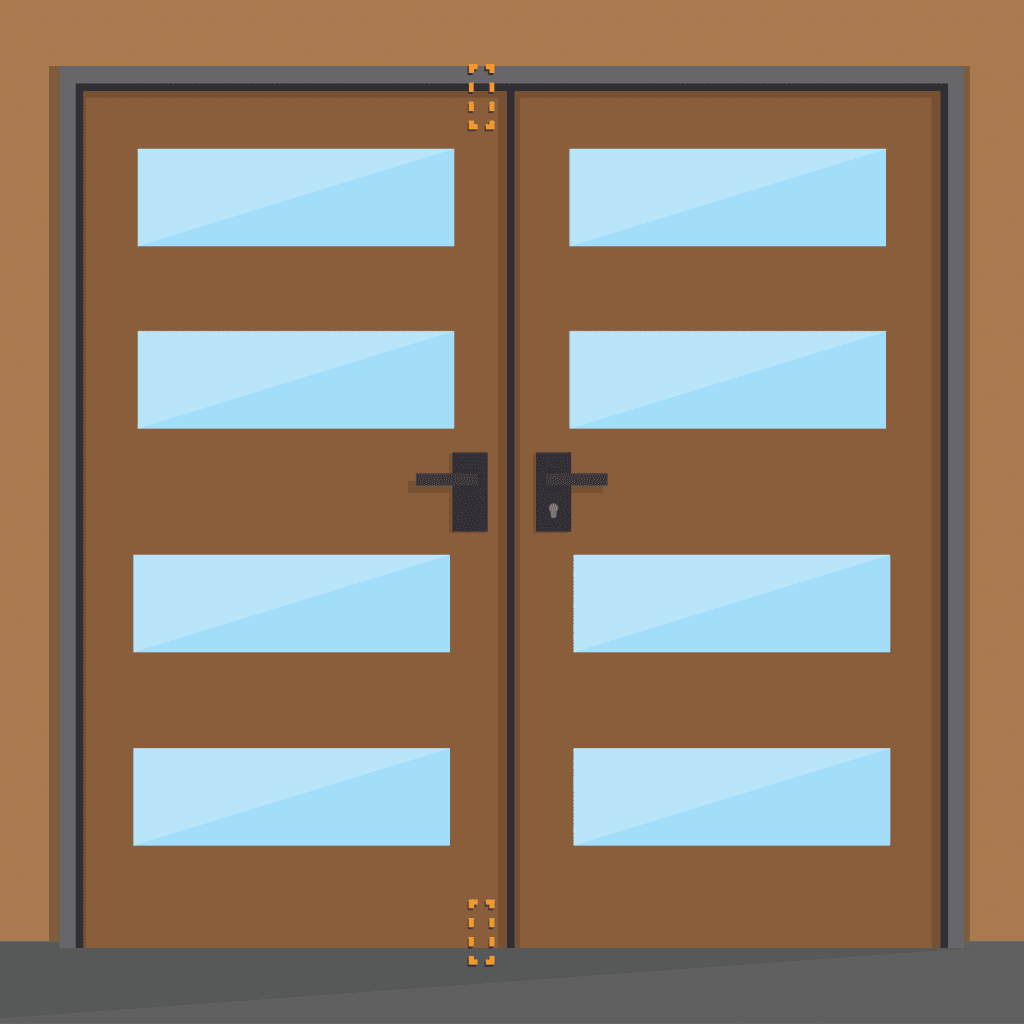

Choosing Active Door

Choose your active door based on where the active door is on the existing door. The active door that is the side with the lock on it, and is generally used the most. The inactive door will come with either patio bolts or flush bolts depending on your selection.

Always remember to choose active door placement from the outside.

Measuring Lock Height

Depending on whether you want the security door lock above or below the existing doors handle will change how you measure your lock height.

If you want the your security door handle below the existing handle, measure to the bottom of the existing, and deduct 60mm.

DIAGRAM 2.5

If you want the your security door handle above the existing handle, measure to the top of the existing, and add 125mm.

DIAGRAM 2.6

Are you ready to start?
